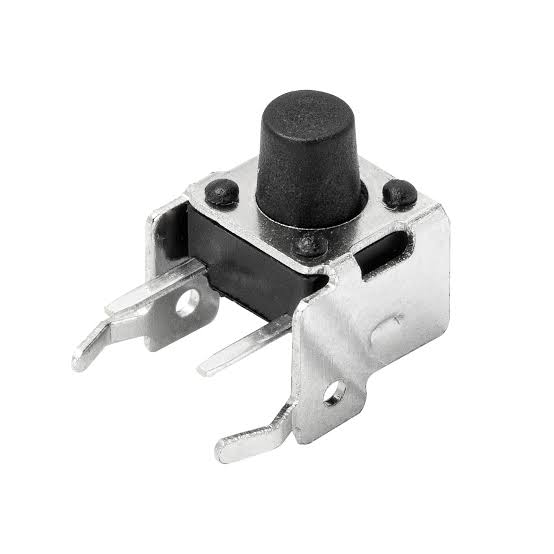

TS013-CBW0FH5.5 Right-Angle Tactile Switch 12V 50mA (SPST, With Bracket, 2.5N / 250gf, Round Button)

Integrate robust user-input control into your electronic enclosures with the TS013-CBW0FH5.5 right-angle tactile switch. Rated at 12V DC / 50mA, this momentary SPST push-button features a round actuator stem ($5.5\text{ mm}$ height) and a sturdy metal mounting bracket designed to absorb mechanical side-actuation forces and protect solder joints from PCB fatigue.

Engineered with a 2.5N (250gf) operating force, it provides a firm, crisp tactile click that prevents accidental triggers while giving clear, tactile confirmation to the user. The right-angle side-entry orientation directs button pressing parallel to the circuit board, making it ideal for edge-mounted reset switches, front-panel controls, industrial human-machine interfaces (HMI), consumer appliances, and custom enclosure builds.

Key Features:

• Reinforced Metal Bracket: Side mounting frame absorbs button actuation pressure and shields solder connections.

• Firm 250gf Tactile Response: $2.5\text{ N}$ operating force offers a solid, distinct click sensation and accidental-press resistance.

• Right-Angle Side Entry: Allows seamless horizontal button mounting along the PCB edge.

• Round Button Actuator: $5.5\text{ mm}$ height stem fits standard front panel cutouts and keycaps.

Specifications:

• Part Number: TS013-CBW0FH5.5

• Switch Type: Tactile Switch / Push Button

• Circuit Configuration: SPST-NO (Normally Open)

• Electrical Rating: 12V DC / 50mA

• Operating Force: 2.5 N ($\approx 250\text{ gf}$)

• Actuator Type: Round Button Stem ($H = 5.5\text{ mm}$)

• Orientation: Right-Angle / Side-Actuated (RA)

• Mounting Type: Through-Hole (THT with Bracket)
