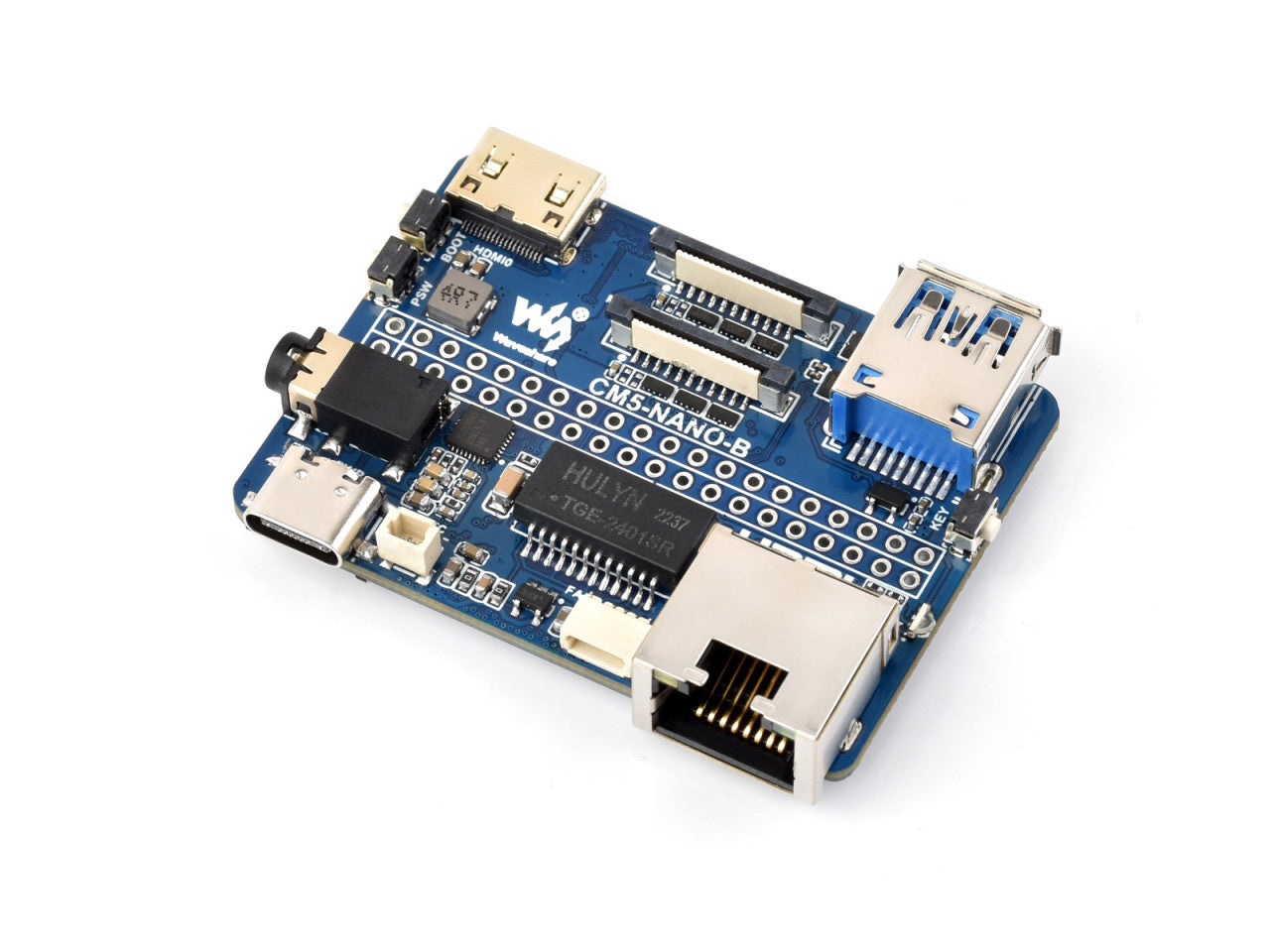

Nano Base Board (B) for Raspberry Pi CM5 (55x41mm)

Compact carrier board designed for the Raspberry Pi Compute Module 5 with the exact same footprint as the CM5. This base board integrates Gigabit Ethernet, USB 3.2, mini HDMI with 4K support and dual MIPI interfaces in a compact 55 x 41 mm form factor. Perfect for embedded applications and prototyping where space efficiency, performance and expandability are required.

Features

• Same dimensions as the Compute Module 5, compatible with all CM5 variants
• Gigabit Ethernet for high-speed networking
• USB 3.2 Gen1 Type-A for fast data transfer
• Mini HDMI output with 4K display support
• USB audio via 3.5 mm jack
• Dual MIPI 4-lane interfaces (22-pin, 0.5 mm FPC) for DSI or CSI modules
• 16-pin PCIe connector, Gen2/3 x1 for expansion
• microSD slot for CM5-Lite (without eMMC)
• 40-pin GPIO header for broad connectivity
• Power and boot buttons for convenient control

Specifications

• Compatibility: Raspberry Pi Compute Module 5, all variants
• Networking: 1x Gigabit Ethernet (RJ45)
• USB: 1x USB 3.2 Gen1 Type-A
• Video: 1x mini HDMI, 4K support
• Audio: USB audio, 3.5 mm jack
• MIPI: 2x 4-lane interfaces, 22-pin 0.5 mm FPC
• PCIe: 16-pin connector, Gen2/3 x1
• Storage: microSD slot for CM5-Lite
• Power supply: 5V 5A DC
• GPIO: 40-pin header
• Buttons: Power and Boot

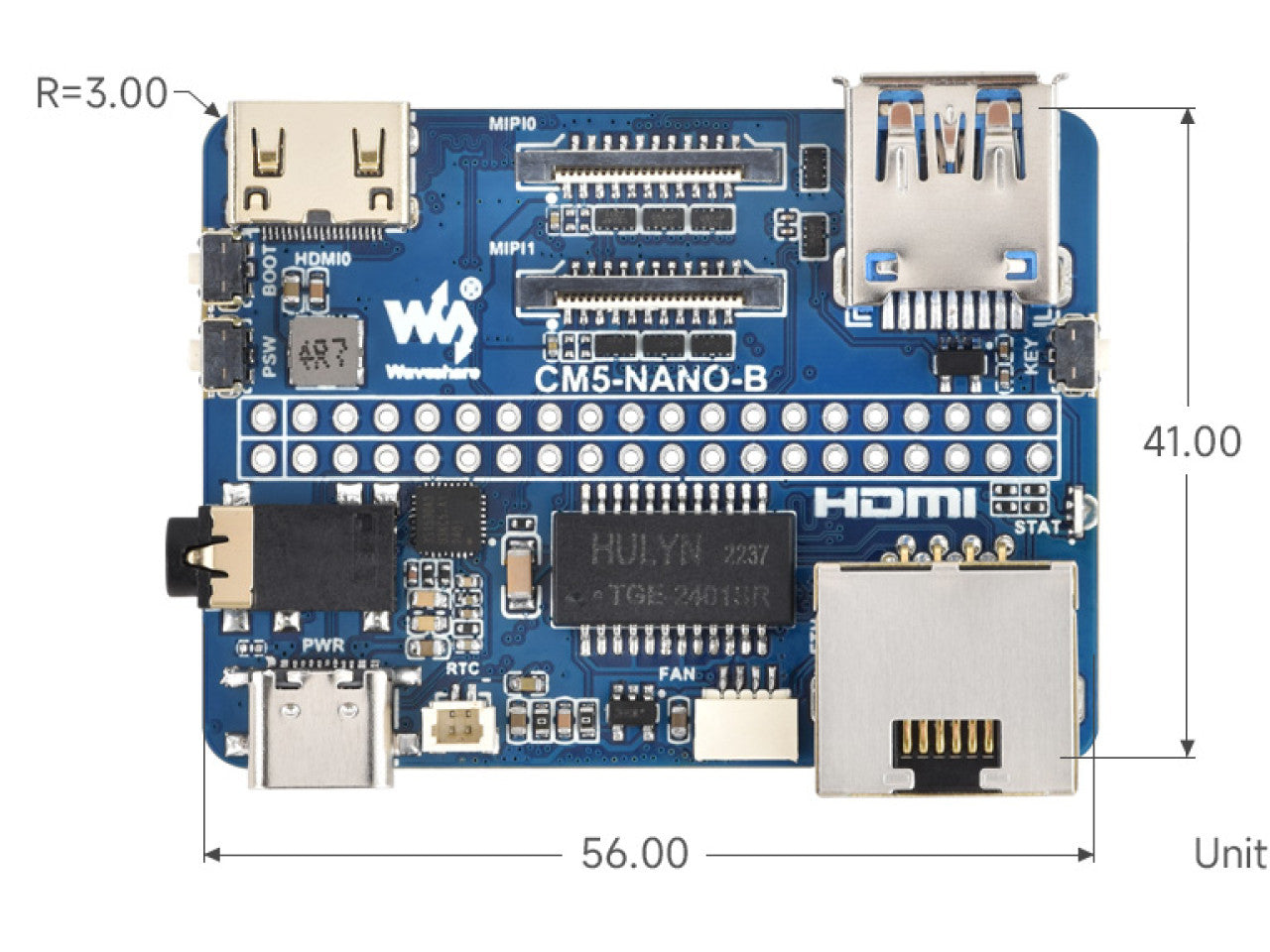

• Dimensions: 55 x 41 mm
