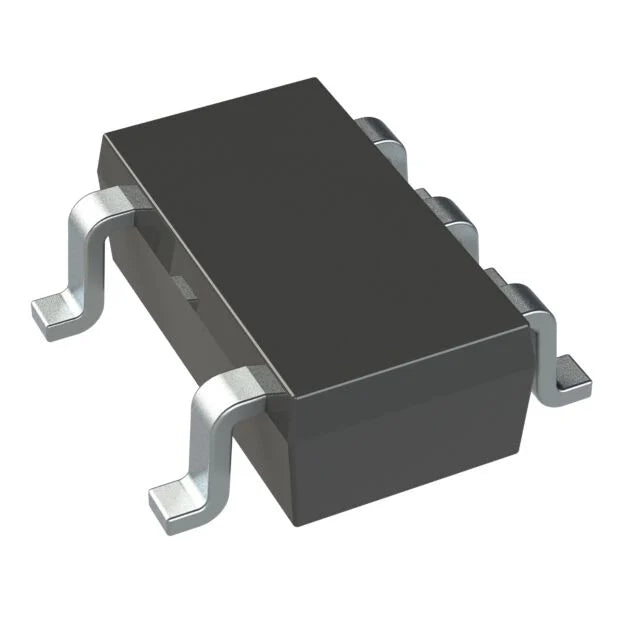

MCP6001T-I/OT Rail-to-Rail Operational Amplifier (C116490, SOT-23-5)

Process analog signals with precision and efficiency using the MCP6001T-I/OT general-purpose operational amplifier. Designed for low-voltage applications, this versatile IC operates seamlessly from 1.8V to 6.0V, making it a perfect companion for 3.3V and 5V microcontrollers like Arduino or STM32.

A standout feature of the MCP6001 is its Rail-to-Rail Input and Output (RRIO) capability. This allows the amplifier to utilize the entire power supply range for its input and output signals without clipping, maximizing dynamic range in low-voltage circuits. Packaged in a compact SOT-23-5 footprint, it is an essential component for designing custom sensor interfaces, current monitoring circuits, active filters, and signal buffers in space-constrained DIY electronics and robotics.

Key Features:

• Rail-to-Rail I/O: Maximizes signal dynamic range by allowing input and output voltages to swing completely to the power supply rails.

• Low Power Consumption: Draws a typical quiescent current of just 100 µA, perfect for battery-powered drone accessories and IoT devices.

• Low Voltage Operation: Fully functional on a wide supply range from 1.8V to 6.0V.

• 1 MHz Bandwidth: Provides a 1 MHz Gain Bandwidth Product (GBWP), offering plenty of speed for general-purpose analog signal conditioning.

Specifications:

• Part Number: MCP6001T-I/OT (LCSC: C116490)

• Component Type: Operational Amplifier (Op-Amp)

• Supply Voltage: 1.8V – 6.0V

• Gain Bandwidth Product (GBWP): 1 MHz

• Features: Rail-to-Rail Input/Output

• Package Type: SOT-23-5 (SMD/SMT)
