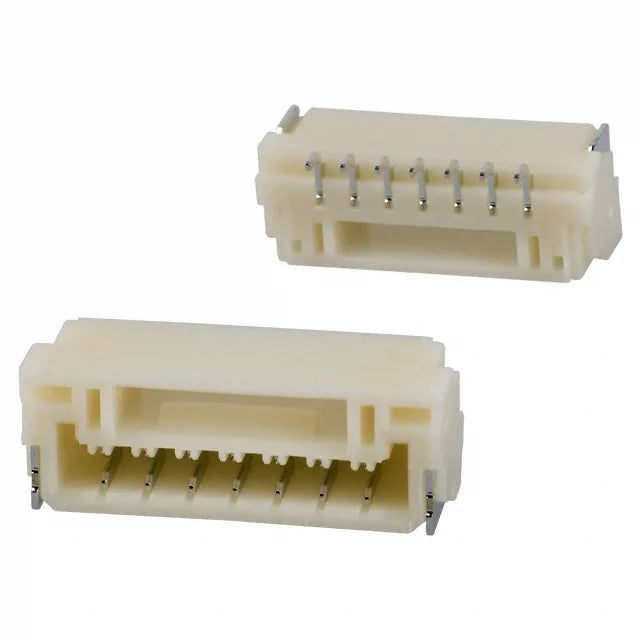

JST SM07B-GHS-TB GH Series 7-Pin Right-Angle SMT Connector Header (1.25mm Pitch)

Connect complex multi-channel sensor arrays, display interfaces, and main communication buses with the genuine JST SM07B-GHS-TB right-angle surface-mount header. As part of JST's popular 1.25mm pitch GH series, this 7-pin shrouded header is engineered with a positive mechanical locking mechanism that prevents accidental disconnects under heavy vibration and movement.

Its right-angle (side-entry) design routes cable harnesses flat along the PCB surface, making it an excellent choice for low-profile enclosures, drone flight controller expansion ports, Gimbal controllers, and compact industrial IoT controllers. In addition to its 7 signal pins, it features robust surface-mount metal side tabs that absorb wire tension and protect delicate solder joints from fatigue and PCB pad peel-off.

Key Features:

• 1.25mm High-Density Pitch: Compact spacing packs 7 signal channels into a minimal PCB footprint.

• Positive Locking Mechanism: Integrated locking latch holds the mating housing securely during shock and heavy vibration.

• Low-Profile Right-Angle Entry: Side-entry orientation allows wiring to run parallel to the board for thin enclosure designs.

• Reinforced Metal SMT Solder Nails: Side tabs absorb cable strain, preserving the integrity of the signal solder joints.

Specifications:

• Part Number: SM07B-GHS-TB

• Manufacturer: JST (Japan Solderless Terminals)

• Connector Family: GH Series

• Number of Positions: 7 Pins

• Pitch: 1.25 mm

• Orientation: Right-Angle / Side-Entry

• Mounting Type: Surface Mount (SMD / SMT)
