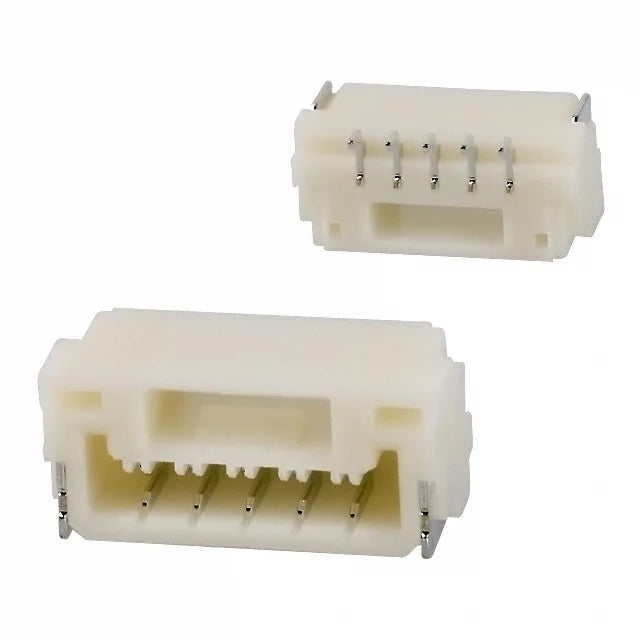

JST SM05B-GHS-TB(LF)(SN) GH Series 5-Pin Right-Angle SMT Connector Header (1.25mm Pitch)

Establish reliable multi-signal connections in space-constrained electronic assemblies with the genuine JST SM05B-GHS-TB(LF)(SN) right-angle surface-mount header. As part of JST’s popular 1.25mm pitch GH series, this 5-pin shrouded connector features a positive mechanical locking mechanism that prevents accidental disconnection caused by high vibration, shock, or cable movement.

Its right-angle (side-entry) design directs cable harnesses parallel to the circuit board, making it ideal for low-profile enclosures, drone flight controllers, camera gimbals, and compact IoT sensors. Equipped with 5 signal contacts and robust surface-mount metal side tabs (solder nails) that absorb cable tension, it guards delicate pin solder joints against board peel-off.

Key Features:

• 1.25mm Micro Pitch: High-density 5-pin layout conserves precious PCB surface area.

• Positive Mechanical Lock: Tactile locking latch keeps the mating housing securely attached during movement and vibration.

• Low-Profile Right-Angle Entry: Side-entry layout enables flat wire routing along the PCB.

• Lead-Free & RoHS Compliant: (LF)(SN) designation confirms lead-free construction with pure tin contact plating.

Specifications:

• Part Number: SM05B-GHS-TB(LF)(SN)

• Manufacturer: JST (Japan Solderless Terminals)

• Connector Family: GH Series

• Number of Positions: 5 Pins

• Pitch: 1.25 mm

• Orientation: Right-Angle / Side-Entry

• Mounting Type: Surface Mount (SMD / SMT)
