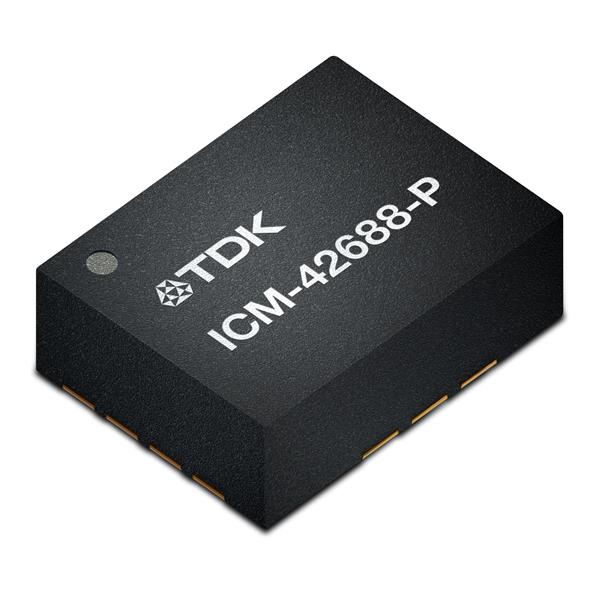

ICM-42688-P Ultra-Low Noise 6-Axis IMU (Gyro & Accelerometer, LGA-14)

Unlock the smoothest flight performance possible with the ICM-42688-P premium 6-axis MotionTracking device. Widely regarded as the new gold standard for modern FPV drone Flight Controllers, this high-end IMU (Inertial Measurement Unit) combines a 3-axis gyroscope and a 3-axis accelerometer. It is specifically engineered to deliver an industry-leading ultra-low noise profile, making it significantly superior to older sensors like the MPU6000 or BMI270 when dealing with high-frequency frame resonances and motor vibrations.

Capable of blazing-fast gyro sampling rates up to 32 kHz via the SPI interface, it provides the raw, unfiltered data needed for ultra-fast PID loop times and advanced RPM filtering in Betaflight and INAV. Furthermore, its impeccable precision makes it the absolute best choice for recording pristine Blackbox data, ensuring flawless cinematic video stabilization in post-production software like Gyroflow. Packaged in a standard 2.5x3mm LGA-14 footprint, it is the ultimate repair or upgrade component for premium flight controllers.

Key Features:

• Ultra-Low Noise: Industry-leading noise performance effectively eliminates gyro jitter, making tuning easier and flight characteristics incredibly smooth.

• High-Speed Sampling: Supports gyro update rates of up to 32 kHz, allowing for lightning-fast 8k PID loops and aggressive filtering strategies.

• Cinematic Ready: Delivers pristine motion data, essential for flawless Gyroflow video stabilization without micro-jitters.

• Dual Interface: Easily interfaces with microcontrollers via high-speed SPI (up to 24MHz) or I2C.

Specifications:

• Part Number: ICM-42688-P

• IC Type: 6-Axis IMU (3-Axis Gyroscope + 3-Axis Accelerometer)

• Max Gyro Rate: Up to 32 kHz

• Digital Interface: SPI / I2C / I3C

• Package Type: LGA-14 (2.5 x 3.0 x 0.91 mm, SMD)
