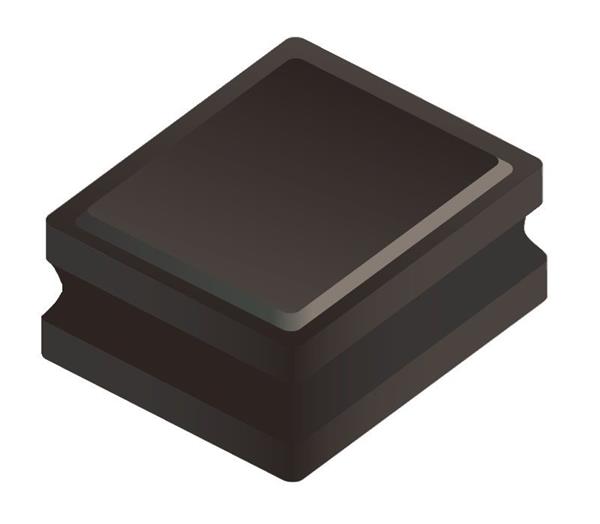

Bourns SRN2010-1R0M Semi-Shielded Power Inductor (1µH, 2.4A, 72mΩ max, 0805 SMD)

Boost power conversion efficiency in space-constrained electronics with the genuine SRN2010-1R0M semi-shielded power inductor from Bourns. Delivering a 1 µH inductance value in a ultra-compact 0805 footprint (2.0 x 1.25 mm) with a thin profile of just 1.0 mm, this high-performance inductor handles impressive saturation currents up to 2.4 A with a low DC resistance of 72 mΩ.

Featuring Bourns' magnetic-resin coating technology, the SRN2010 series offers effective semi-shielding to reduce electromagnetic interference (EMI) while maintaining an ultra-small PCB footprint. It is an excellent choice for compact DC-DC buck/boost converters, smartphone power rails, wearable electronics, IoT modules, and portable medical devices.

Key Features:

• Ultra-Low Profile (1.0 mm): Extremely thin design ideal for modern, high-density, low-profile board layouts.

• High Saturation Current (2.4A): Delivers outstanding power density in a tiny 0805 frame.

• Low DC Resistance (<= 72 mΩ): Reduces I²R power dissipation for higher energy efficiency and cooler operation.

• Semi-Shielded Construction: Magnetic resin coating provides EMI suppression superior to unshielded inductors.

Specifications:

• Part Number: SRN2010-1R0M

• Manufacturer: Bourns

• Inductance: 1.0 µH (±20%)

• DC Resistance (DCR): 57 mΩ typ. / 72 mΩ max

• Rated Current (Irms / Isat): 1.8 A rms / 2.4 A saturation

• Package / Case: 0805 (2012 Metric)

• Dimensions: 2.0 mm x 1.25 mm x 1.0 mm

• Mounting Type: Surface Mount (SMD / SMT)
