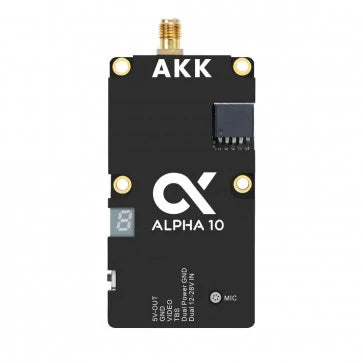

AKK Alpha10 5.8GHz 10W Ultra High Power UAV Video Transmitter (25mW to 10000mW, SmartAudio, Cooling Fan)

Achieve extreme long-range video transmission and exceptional penetration capability with the AKK Alpha10 5.8GHz video transmitter (VTX). Engineered specifically for commercial UAVs, industrial inspection drones, and long-range FPV platforms, this heavy-duty VTX features an unprecedented maximum RF power output of up to 10W (10,000mW).

Housed in a rugged CNC-machined aluminum alloy casing with an integrated active high-speed cooling fan, the Alpha10 efficiently dissipates heat during high-power operations. It offers flexible, adjustable power levels (from 25mW for bench testing up to full 10W) and supports standard SmartAudio protocol for remote parameter control via flight controller OSD or telemetry.

Key Features:

• Extreme 10W (10,000mW) Output Power: Unmatched signal penetration through dense obstacles and extreme long-range telemetry video links.

• Adjustable Power Levels: Multi-stage switching (25mW / 500mW / 2000mW / 5000mW / 10000mW) ensures safe bench testing and power management.

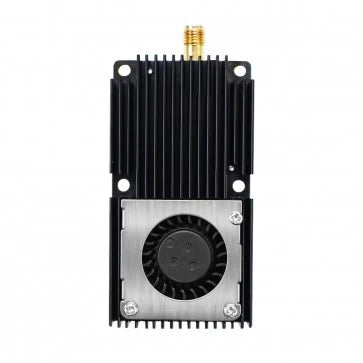

• Active Cooling System: Heavy-duty CNC aluminum heat sink combined with a built-in cooling fan prevents thermal throttling.

• SmartAudio Protocol: Allows full remote tuning of channels, bands, and power levels directly via Betaflight / INAV / ArduPilot OSD.

• Wide Input Voltage Range: Supports direct high-voltage power input (7V–36V / 2S–8S LiPo) with clean BEC filtration.

Specifications:

• Model: AKK Alpha10 5.8G VTX

• Operating Frequency: 5.8 GHz (Standard 37/40 Channels)

• Output Power: 25mW / 500mW / 2000mW / 5000mW / 10000mW (10W Max)

• Input Voltage: 7V – 36V DC (2S – 8S LiPo)

• BEC Output: 5V / 500mA (for camera power)

• Antenna Connector: MMCX / SMA (Heavy-Duty Cable)

• Control Protocol: SmartAudio

• Cooling: Heavy-Duty CNC Aluminum Enclosure + Built-in Active Fan

• Mounting Pattern: 30.5 mm x 30.5 mm (M3) / Heavy-Duty Desktop Footprint

• Weight: ~65 g – 85 g (with heatsink assembly)
