ToolkitRC M9 DC Smart Battery Charger Workstation (8S, 25A, 600W, Color Display, Audio Player)

Transform your field charging experience with the versatile ToolkitRC M9, a multifunctional 600W DC smart charger and multi-tool workstation. Designed for RC enthusiasts, FPV pilots, and drone technicians, the M9 supports battery chemistries up to 8S LiPo/LiHv and delivers up to 25A of balance charging power in an ultra-compact package.

Beyond high-power balance charging, the M9 functions as a complete portable workbench tool. It features an adjustable DC bench power supply (1–30V, 1–25A), a built-in signal analyzer/generator (PWM, PPM, S.Bus), a battery internal resistance meter, and a customizable 2.4-inch color display with voice prompts and customizable audio playback. Its flip-up screen design ensures optimal viewing angles in both bright sunlight and workshop settings.

Key Features:

• High-Power Output (600W / 25A): Charges 1S to 8S LiPo, LiHv, LiFe, Lion, NiMH, and Lead-Acid batteries with up to 25A charging current.

• Multifunctional Workbench Tool: Functions as a balance charger, signal generator/analyzer (PWM/PPM/S.Bus), and adjustable DC power supply.

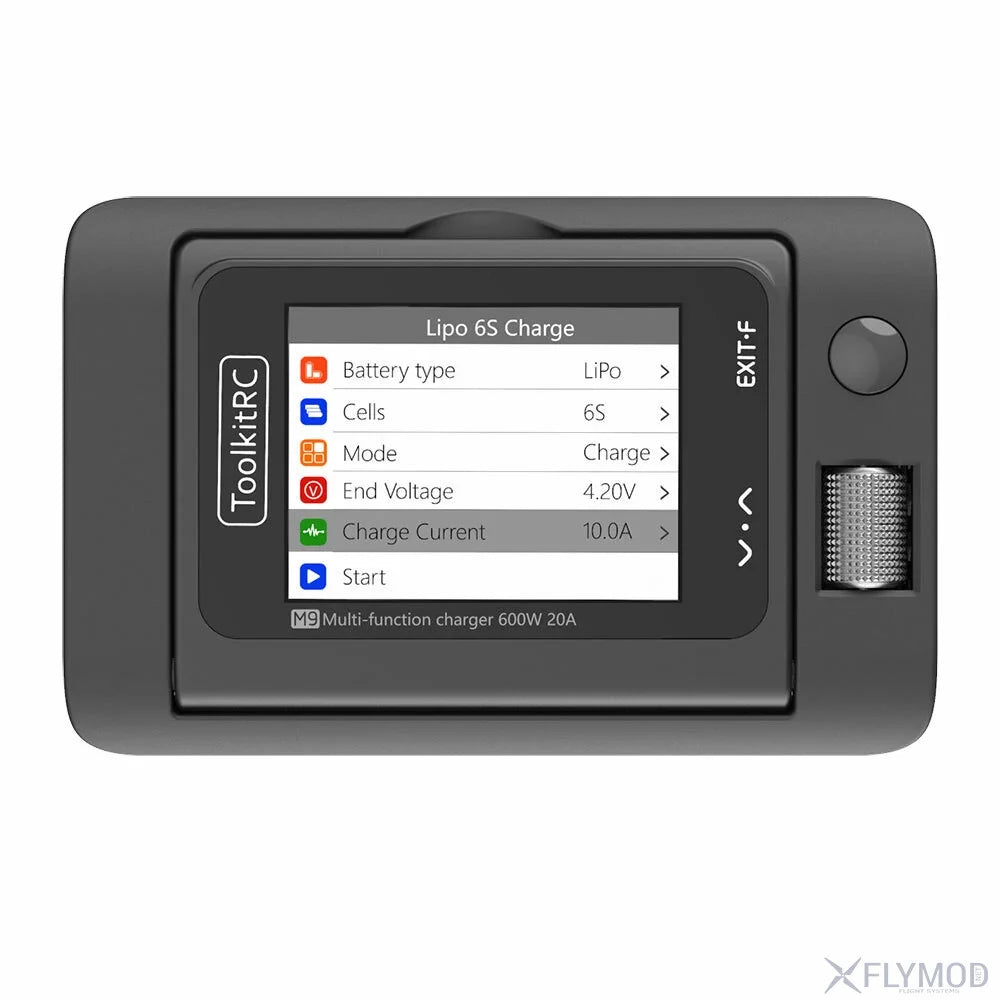

• Flip-Up Color Display: 2.4-inch IPS screen tilts up to 80 degrees for comfortable viewing in field or bench environments.

• Audio & Voice Prompts: Supports custom voice alerts and built-in audio playback functionality via micro SD card.

• High-Precision Balance Current: 1000mA per cell balancing current guarantees rapid and precise cell equalization.

Specifications:

• Model: ToolkitRC M9

• Input Voltage: DC 7.0V – 35.0V (MAX 30A)

• Charge Power: 0.1A – 25.0A @ 600W

• Discharge Power: 0.1A – 25.0A @ 600W (Recycle Mode) / 0.1A – 3.0A @ 15W (Normal Mode)

• Supported Cell Counts: LiPo / LiHv / LiFe / Lion (1S – 8S), NiMH (1S – 20S), Pb (1S – 10S)

• Balance Current: 1000mA @ 4.2V

• Signal Output/Input: PWM (880us–2120us), PPM (8CH), S.Bus (16CH)

• Power Supply Mode: 1.0V – 30.0V @ 1.0A – 25.0A (CC+CV)

• Display: 2.4" IPS LCD (320 x 240 pixels)

• Dimensions: 108 mm x 71 mm x 36 mm

• Weight: 200 g
