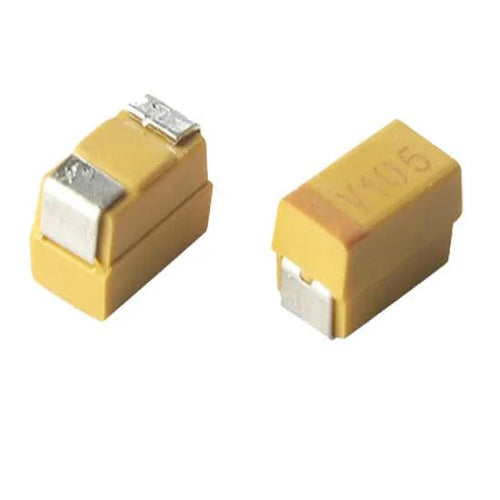

KYOCERA AVX TPSD107K016R0150 Low ESR Tantalum Capacitor (100µF, 16V, 150mΩ, 7343-31 / D Case)

Ensure robust power supply filtering and low-frequency ripple suppression with the genuine TPSD107K016R0150 surface-mount solid tantalum capacitor from KYOCERA AVX. Housed in an industry-standard EIA 7343-31 (D Case) package, this high-performance 100 µF component offers a 16V DC voltage rating combined with an exceptionally low Equivalent Series Resistance (ESR) of just 150 mΩ.

Belonging to AVX’s renowned TPS Low ESR series, this tantalum capacitor retains its capacitance value under DC bias without DC-bias degradation—a significant advantage over high-capacitance ceramic capacitors (MLCCs). Its combination of high volumetric efficiency, low ESR, and high ripple current capability makes it an ideal solution for DC-DC converter input/output bulk filtering, power rail decoupling, LDO output stabilization, and energy storage in industrial and telecom equipment.

Key Features:

• Ultra-Low ESR (150 mΩ): Substantially reduces output ripple voltage and transient spikes in switching power supplies.

• Stable Capacitance Performance: No DC-bias capacitance loss, ensuring full 100 µF performance at operating voltages.

• High Volumetric Efficiency: High-capacity bulk storage in a compact 7.3 x 4.3 mm SMD footprint.

• High Ripple Current Capability: Designed specifically for demanding power management applications.

Specifications:

• Part Number: TPSD107K016R0150

• Manufacturer: KYOCERA AVX

• Capacitance: 100 µF

• Voltage Rating: 16 V DC

• Tolerance: ±10% (K)

• ESR (Max @ 100kHz): 150 mΩ

• Package / Case: EIA 7343-31 (AVX Size D / 2917 Metric)

• Dimensions: 7.3 mm x 4.3 mm x 2.9 mm

• Operating Temperature: -55°C to +125°C

• Mounting Type: Surface Mount (SMD / SMT)
