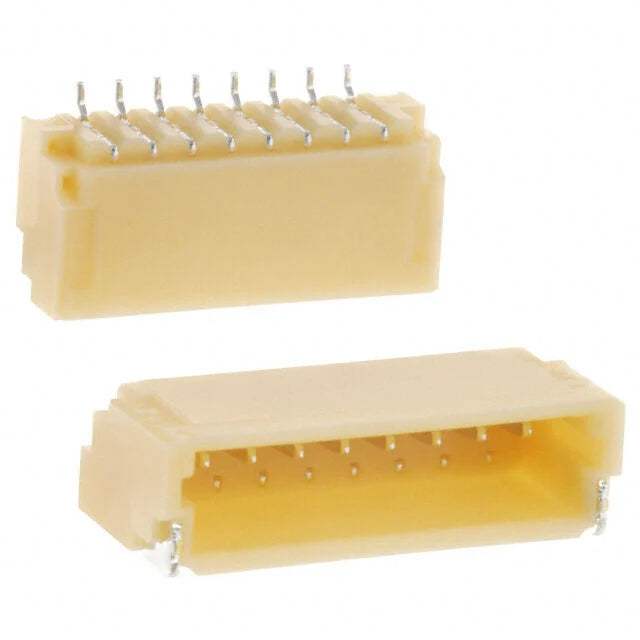

JST SM08B-SRSS-TB SH Series 8-Pin Right-Angle SMT Connector Header (1.00mm Pitch)

Establish high-density multi-channel signal interconnections with the genuine JST SM08B-SRSS-TB right-angle surface-mount header. Part of JST’s ultra-compact SH series (featuring a fine 1.00mm pitch), this 8-pin connector is engineered for space-critical applications where standard 1.25mm or 2.54mm connectors are too large.

Its right-angle (side-entry) design routes cabling parallel to the circuit board, enabling ultra-low-profile enclosure designs. Equipped with 8 signal terminals and side metal solder tabs (solder nails) that absorb cable tension, it provides exceptional board-retention strength against strain. It is widely used for multi-channel ESC-to-flight-controller harnesses in FPV drones, camera gimbals, compact OLED interfaces, and robotics.

Key Features:

• Ultra-Fine 1.00mm Pitch: Significantly smaller footprint than 1.25mm headers, enabling maximum circuit density on compact PCBs.

• Low-Profile Right-Angle Entry: Side-entry layout allows wiring to run flat along the PCB, ideal for thin enclosures.

• 8-Pin Multi-Signal Capacity: Packs 8 discrete lines (power, ground, telemetry, signals) into a tiny mounting footprint.

• Reinforced SMT Metal Tabs: Side tabs absorb mechanical pulling forces to protect delicate signal pin solder joints.

Specifications:

• Part Number: SM08B-SRSS-TB

• Manufacturer: JST (Japan Solderless Terminals)

• Connector Family: SH Series

• Number of Positions: 8 Pins

• Pitch: 1.00 mm (Note: SH series pitch is 1.00mm)

• Orientation: Right-Angle / Side-Entry

• Mounting Type: Surface Mount (SMD / SMT)
