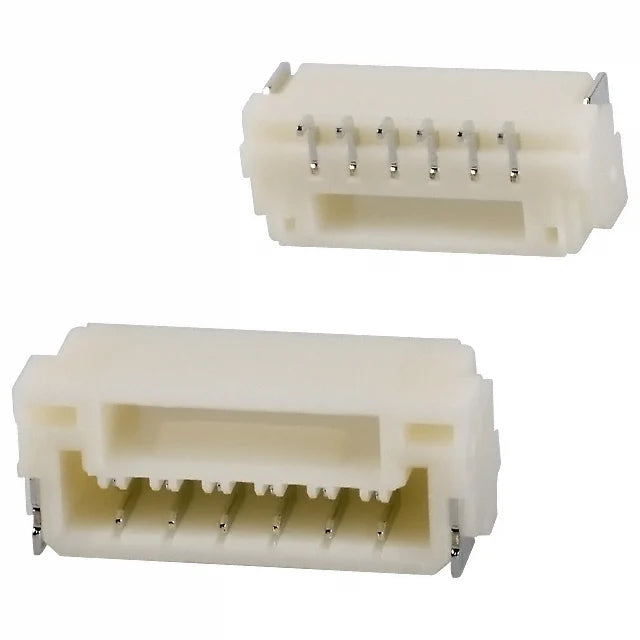

JST SM06B-GHS-TB GH Series 6-Pin Right-Angle SMT Connector Header (1.25mm Pitch)

Connect multi-signal sensor modules, GPS units, and serial communication buses with the genuine JST SM06B-GHS-TB right-angle surface-mount header. Part of JST's popular 1.25mm pitch GH connector family, this 6-pin shrouded header features a positive mechanical locking latch that prevents vibration-induced disconnects in motion-heavy environments.

Its right-angle (side-entry) profile routes cabling parallel to the board, ideal for low-profile enclosures, slim handheld electronics, custom drone flight controllers, and robotics platforms. Alongside its 6 signal pins, it features robust surface-mount metal side tabs that absorb wire strain and reinforce physical mounting strength against PCB solder joint fatigue.

Key Features:

• 1.25mm Micro Pitch: High pin-density layout saves significant PCB space on compact circuit designs.

• Positive Locking Mechanism: Tactile locking latch holds the mating housing securely during heavy shock and vibration.

• Right-Angle Cable Entry: Directs wiring parallel to the board surface for ultra-slim profile enclosures.

• Reinforced Metal SMT Solder Nails: Side tabs absorb mechanical pulling forces, protecting signal pin solder joints.

Specifications:

• Part Number: SM06B-GHS-TB

• Manufacturer: JST (Japan Solderless Terminals)

• Connector Family: GH Series

• Number of Positions: 6 Pins

• Pitch: 1.25 mm

• Orientation: Right-Angle / Side-Entry

• Mounting Type: Surface Mount (SMD / SMT)
