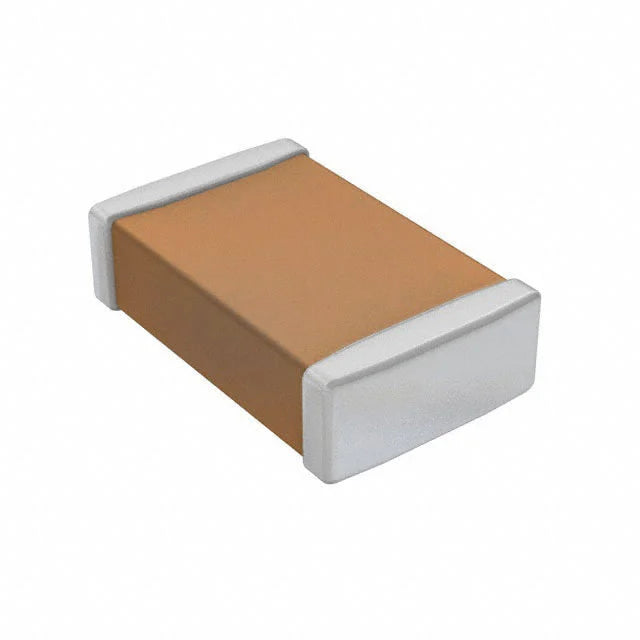

Samsung CL21A226MOQNNNE High-Capacitance Ceramic Capacitor (22µF, 16V, X5R, ±20%, 0805 SMD)

Maximize power storage and voltage stability in compact circuit designs with the genuine CL21A226MOQNNNE surface-mount multilayer ceramic capacitor (MLCC) from Samsung Electro-Mechanics. Housed in a standard, easy-to-solder 0805 package (2.0 x 1.25 mm), this high-density 22 µF component delivers a 16V DC operating voltage rating with ±20% tolerance.

Constructed with an X5R Class 2 dielectric (-55°C to +85°C), this capacitor provides low ESR and low ESL characteristics for high-efficiency ripple attenuation. Packing 22 µF into an 0805 footprint makes it an excellent choice for low-dropout (LDO) regulator stabilization, DC-DC converter output filtering, PMIC power rail bypassing, and high-frequency decoupling in consumer electronics, IoT equipment, and mobile devices.

Key Features:

• High 22 µF Capacitance in 0805 Package: High volumetric efficiency saves PCB space by eliminating the need for larger 1206 or 1210 footprints.

• 16V DC Voltage Rating: Optimal safety clearance for 1.8V, 3.3V, 5V, and 12V power supply lines.

• Low ESR & ESL: Minimizes output voltage ripple and high-frequency switching noise in power supplies.

• Prototyping-Friendly Size: Standard 2.0 x 1.25 mm SMD footprint is easy to solder both manually and in high-speed automated SMT lines.

Specifications:

• Part Number: CL21A226MOQNNNE

• Manufacturer: Samsung Electro-Mechanics

• Capacitance: 22 µF

• Voltage Rating: 16 V DC

• Tolerance: ±20%

• Temperature Coefficient: X5R

• Package / Case: 0805 (2012 Metric)

• Dimensions: 2.0 mm x 1.25 mm x 1.25 mm

• Mounting Type: Surface Mount (SMD / SMT)
