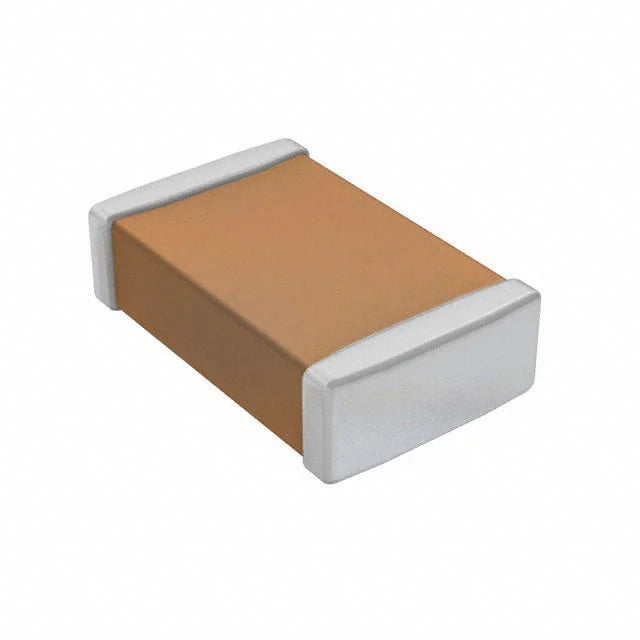

Samsung CL10A475KO8NNNC High-Capacitance Ceramic Capacitor (4.7µF, 16V, X5R, ±10%, 0603 SMD)

Provide reliable power supply decoupling and high-density energy storage with the genuine CL10A475KO8NNNC surface-mount multilayer ceramic capacitor (MLCC) from Samsung Electro-Mechanics. Housed in a standard 0603 footprint (1.6 x 0.8 mm), this 4.7 µF component features a versatile 16V DC operating voltage rating with a tight ±10% tolerance.

Constructed with an X5R Class 2 dielectric (-55°C to +85°C), this capacitor offers low equivalent series resistance (ESR) and low parasitic inductance (ESL) for superior switching noise suppression. Packing 4.7 µF capacitance into an 0603 package makes it an ideal solution for low-dropout (LDO) regulator output filtering, DC-DC converter decoupling, and IC power rail bypassing in compact electronics.

Key Features:

• Versatile 16V DC Rating: Delivers superior voltage clearance over standard 6.3V and 10V capacitors for 3.3V, 5V, and 12V power rails.

• 4.7 µF Capacitance in 0603 Package: High capacitance density in an easily solderable 1.6 x 0.8 mm footprint.

• Low ESR & ESL: Minimizes output voltage ripple and high-frequency noise in power regulation circuits.

• Tight ±10% Tolerance: Guarantees predictable electrical performance across power management stages.

Specifications:

• Part Number: CL10A475KO8NNNC

• Manufacturer: Samsung Electro-Mechanics

• Capacitance: 4.7 µF

• Voltage Rating: 16 V DC

• Tolerance: ±10%

• Temperature Coefficient: X5R

• Package / Case: 0603 (1608 Metric)

• Dimensions: 1.6 mm x 0.8 mm x 0.8 mm

• Mounting Type: Surface Mount (SMD / SMT)
