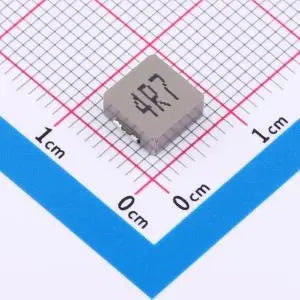

FXL0630-4R7-M High-Current Shielded Power Inductor (4.7µH, 6A+, 33mΩ max, SMD)

Ensure maximum energy transfer efficiency in high-performance power management circuits with the FXL0630-4R7-M surface-mount shielded power inductor. Delivering 4.7 µH inductance in a robust 6x6mm footprint with a low height profile of 3.0 mm, this high-current component features exceptionally low DC resistance (<= 33 mΩ) and high saturation current tolerance (6A+ handling).

Engineered with a fully enclosed molded magnetic alloy construction, the FXL0630 series eliminates audible magnetostrictive hum and prevents magnetic field leakage to neighboring PCB traces. It is an ideal choice for high-current DC-DC buck/boost regulators, motherboard VRMs, automotive electronics, high-power LED drivers, and industrial control power supplies.

Key Features:

• 4.7 µH Inductance & 6A+ High Current Capacity: Excellent power density for high-demand power stages.

• Ultra-Low DCR (<= 33 mΩ): Significantly reduces I²R copper loss to enhance conversion efficiency and keep operating temperatures low.

• Full Shielding: Molded iron-powder alloy body provides excellent EMI suppression.

• Low Profile (3.0mm): Compact 6.6 x 6.0 mm footprint saves space in high-density board layouts.

Specifications:

• Part Number: FXL0630-4R7-M

• Inductance: 4.7 µH (±20%)

• DC Resistance (DCR): 33 mΩ max

• Rated Current (Irms / Isat): 6.0 A min / 7.5 A typ.

• Dimensions: 6.6 mm x 6.0 mm x 3.0 mm

• Mounting Type: Surface Mount (SMD / SMT)
